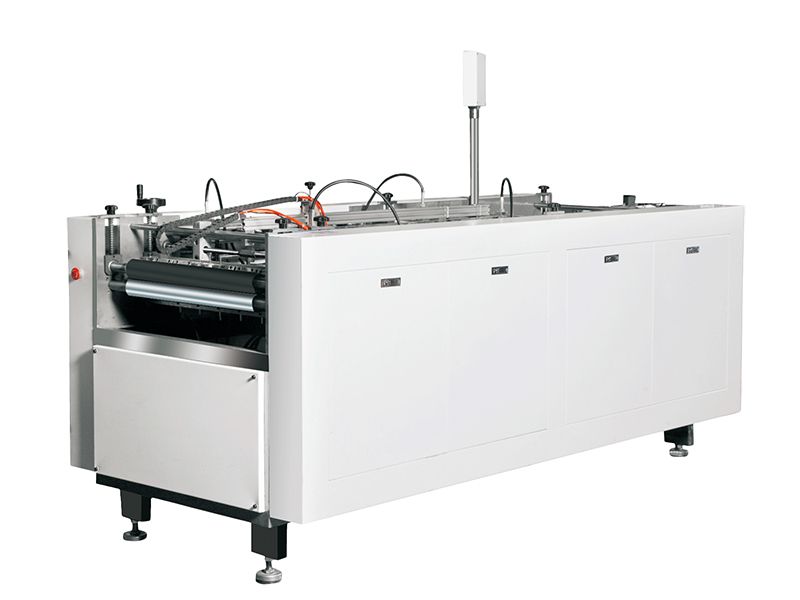

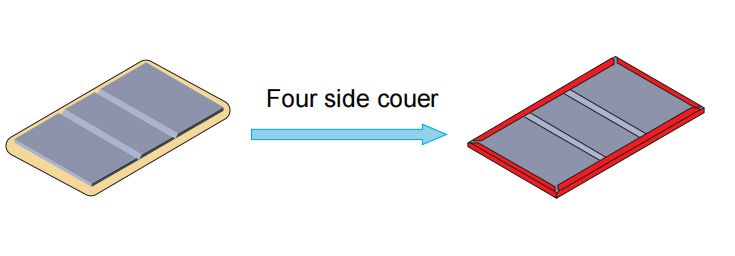

The LY-900SMB is an automatic case making machine designed to efficiently wrap a variety of packaging cardboard boxes and cases, such as wine boxes, book hardcovers, gift boxes, tea boxes, and more. This case making machine can wrap all four sides at once and can be integrated with other machines to create a complete rigid box production line.

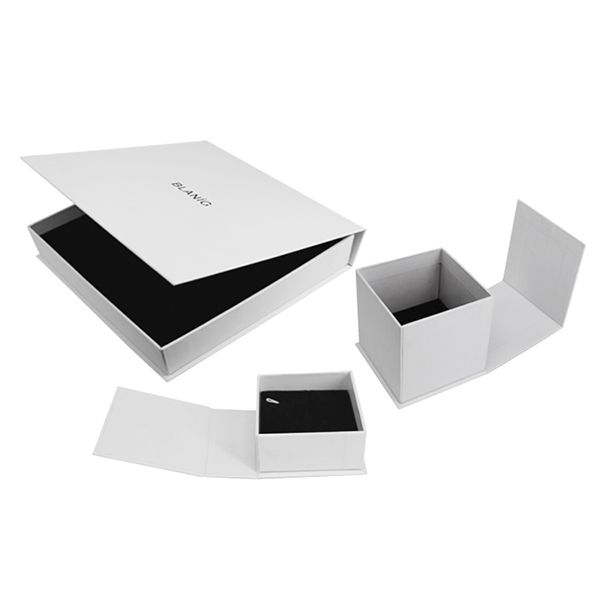

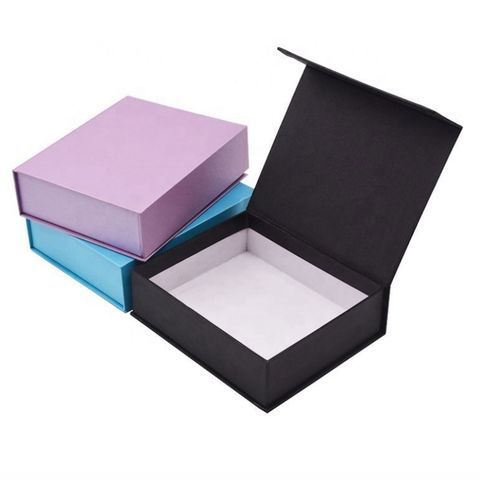

Sample Boxes
The LY-900SMB automatic case making machine is controlled by a programmable logic controller (PLC) and its work parameters can be easily configured through the intuitive touch screen interface. With its advanced technology and user-friendly design, this case making machine offers exceptional performance and reliability for all packaging needs.
Features| Product Model | LY-900SMB |
| Voltage | 380 V / 50 HZ |
| Case Length | 200-900 mm |
| Case Width | 80-450 mm |
| Minimum Length of Central Strap | 20 mm |
| Minimum Side Length | 30 mm |
| Rated Power | 2.5 kW |
| Manufacturing Speed | 20-30 pcs/min |
| Air Pressure | 0.7 pa |
| Overall Size | 2250 mm*1100 mm*1400 mm |
| Weight | 800 kg |
About This Product Do You Want More Information?

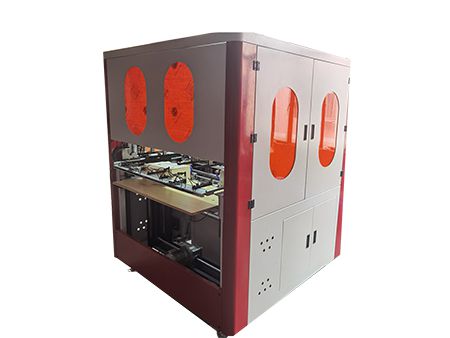

There are some box making Equipment that we featured for choose your best
