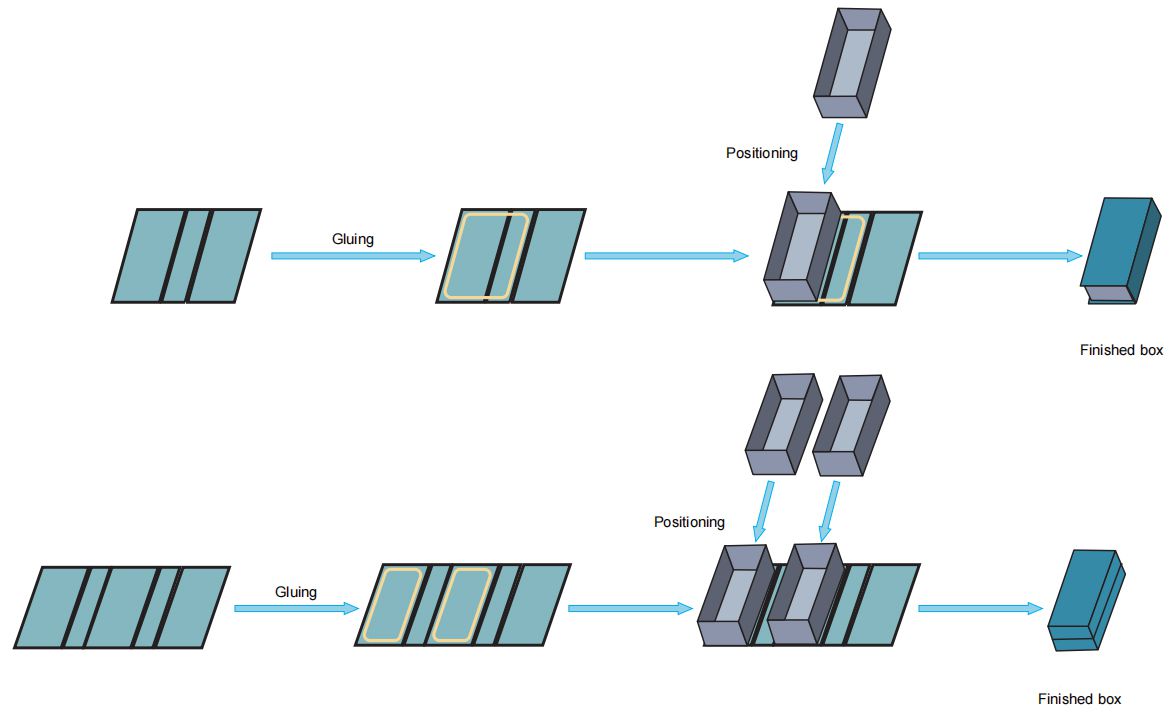

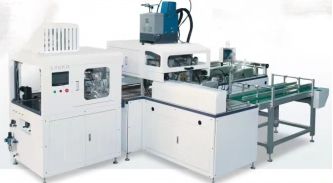

The book-style box assembly machine is an innovative and user-friendly box machine that allows manufacturers of book-style boxes and cosmetic boxes to streamline their production process while reducing costs. Its robotic arm can automatically position and spread the glue based on the product’s size, resulting in greater efficiency and precision. Additionally, the book-style box assembly machine applies the glue in a strip pattern that significantly reduces glue waste and ensures strong adhesion and accuracy.
Moreover, the book-style box assembly machine has a customer-recognized positioning system that enhances accuracy in positioning the inner linings and covers, thereby reducing waste. Moreover, it can position 1-2 paper-made, plastic-made or light-rubber-made inner linings at the same time.

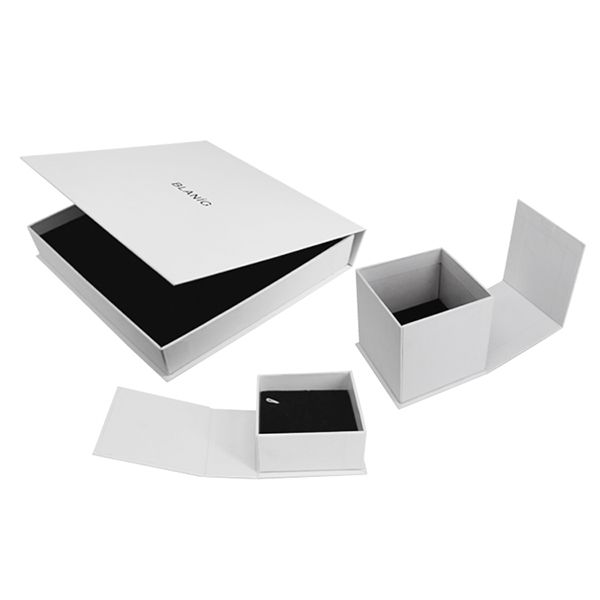

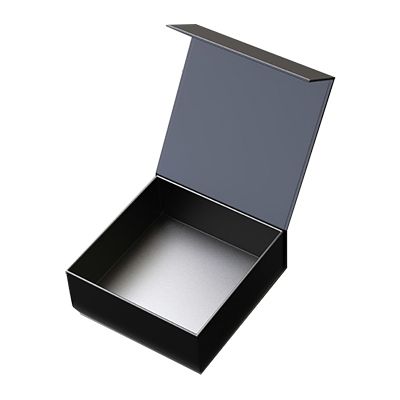

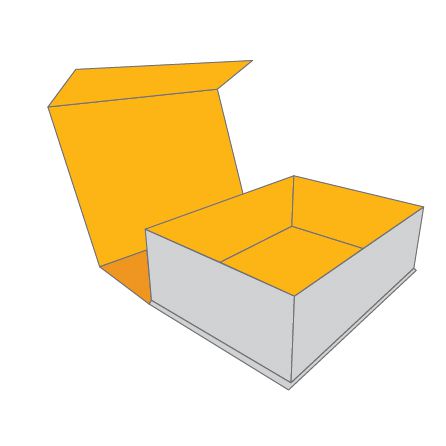

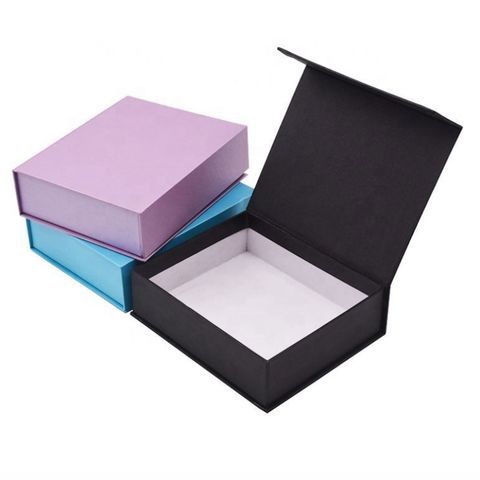

The book-style box machine is ideal for various book-style boxes, including mooncake boxes, food boxes, wine boxes, and cosmetic boxes.
Parameters| Product Model | LY-1000SXH |
| Cover Size (Max) | 900 mm*420 mm |
| Cover Size (Min) | 110 mm*55 mm |
| Inner Lining Size (Max) | 450 mm*370 mm*70 mm |
| Inner Lining Size (Min) | 80 mm*80 mm*25 mm |
| Voltage | 0.6-0.8 MPa |
| Rated Power | 8 kW |
| Positioning Accuracy | ±0.3 mm |
| Manufacturing Speed | ≤25 sheets/min |
| Weight | 1000 kg |
| Overall Size | 4400 mm*2000 mm*1900 mm |
