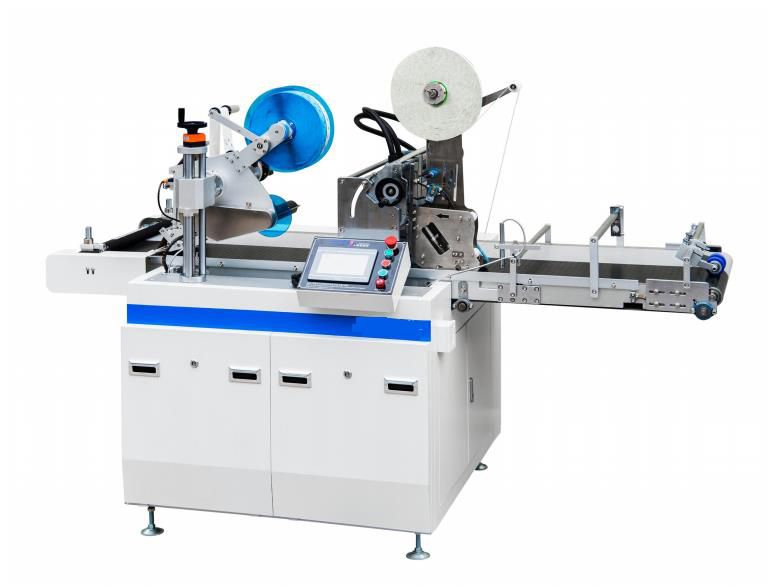

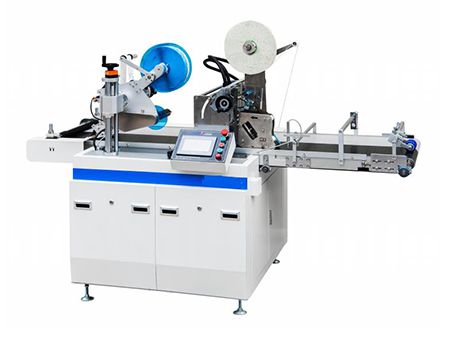

The LY-600SF is a highly versatile machine that automatically folds and applies double-sided adhesive to a variety of products, including folded boxes, cardboard boxes, file bags, and more. The cardboard folding machine can also be used for attaching glass film to eye shadow boxes, labeling ingredient tables, and other types of products. With its ability to handle a range of different applications, the LY-600SF automatic folding machine is a valuable tool for any business looking to streamline its production processes and enhance efficiency.

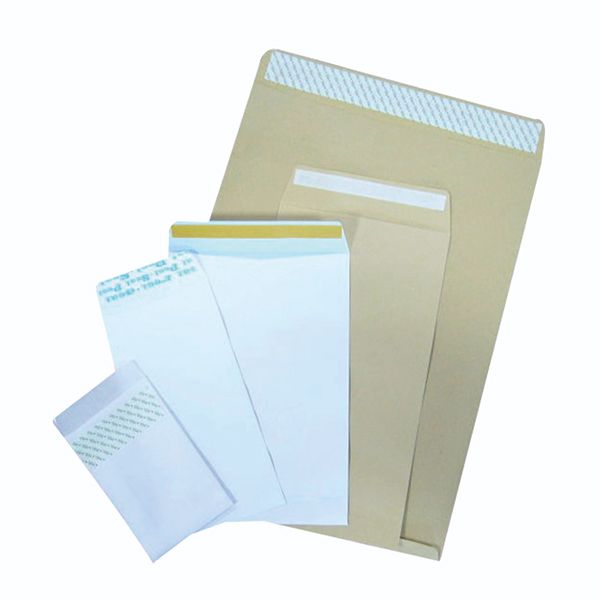

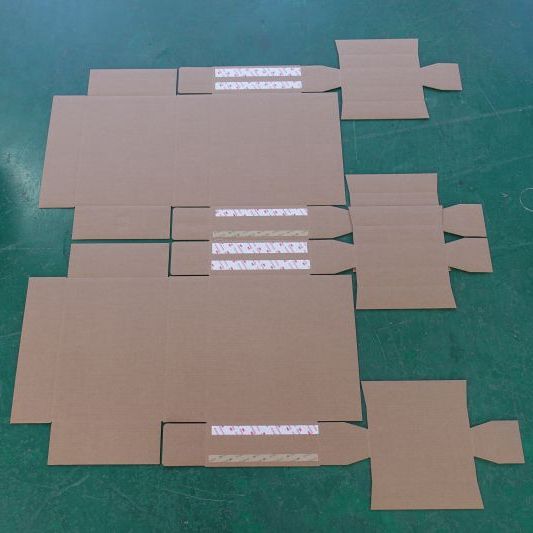

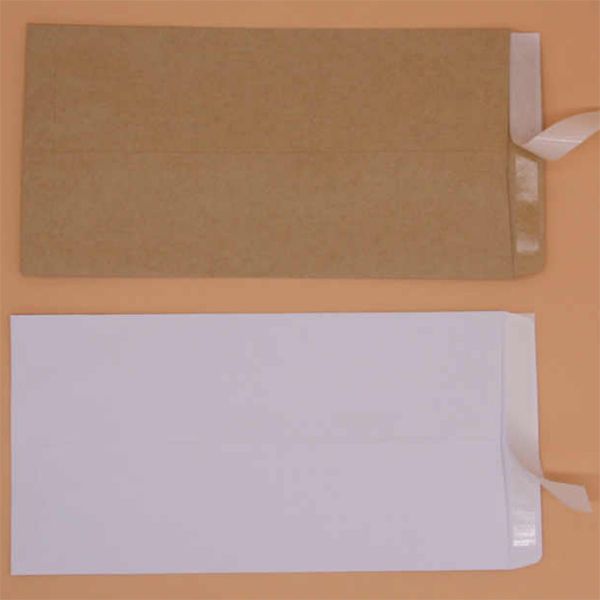

Sample Boxes
| Product Model | LY-600SF |
| Maximum Size of Side-cardboard (L*W) | 800 mm*200 mm |
| Minimum Size of Side-cardboard (L*W) | 100 mm*40 mm |
| Maximum Size of Double-sided Tape (L*W) | 170 mm*170 mm |
| Maximum Size of Double-sided Tape (L*W) | 30 mm*30 mm |
| Width of Belt Conveyor | 600 mm |
| Power / Voltage | 2kW / AC220 V |
| Manufacturing Speed | 40-70 pcs/min |
| Overall Size | 2200 mm*900 mm*1600 mm |
| Weight | 400 KG |

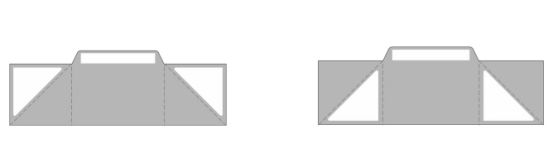

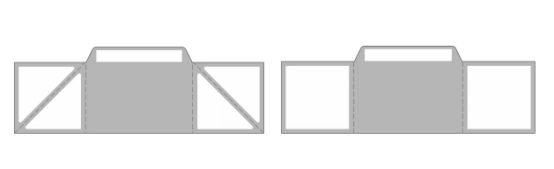

Available for attaching up to four triangular double-sided tapes, or two triangular, two square, and two long strip double-sided tapes simultaneously.

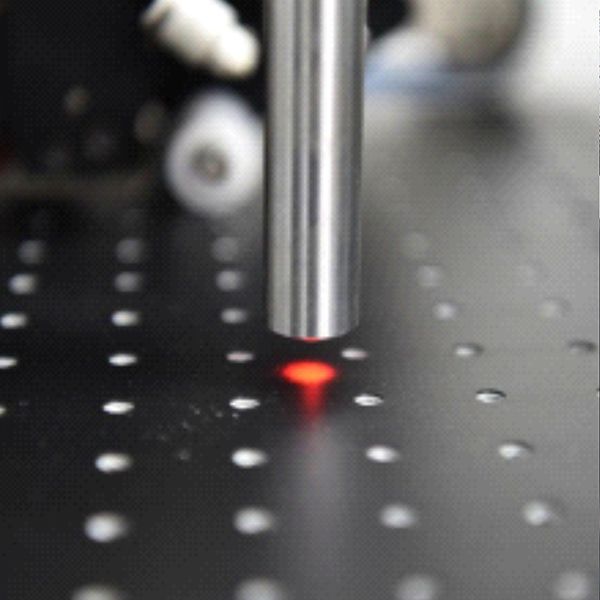

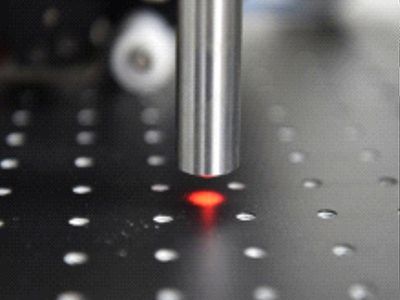

Accurate attachment of double-sided tape with the combination of OMRON fiber optic sensing and DELTA servo positioning.

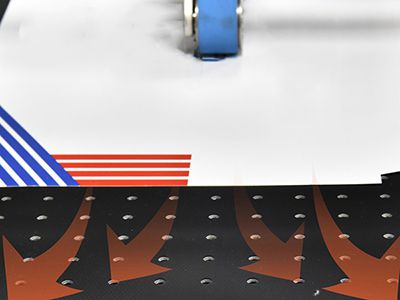

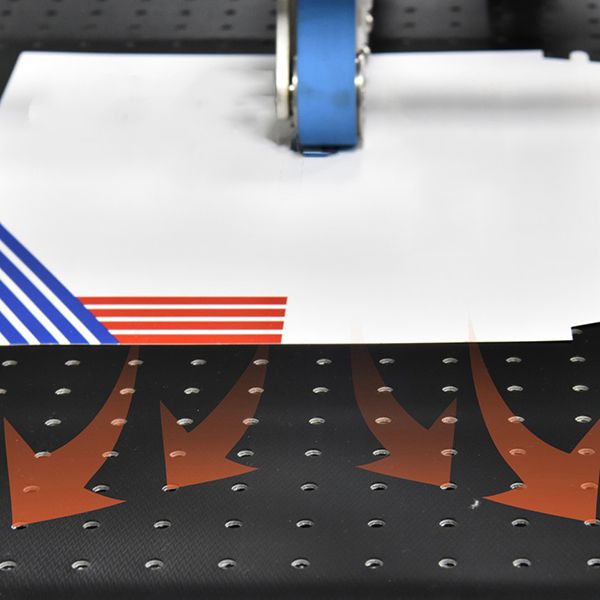

The entire conveyor belt uses suction technology which ensures smooth product transportation and minimal adhesive errors.
Benefit from WEINVIEW’s human-machine interface (HMI) with parameter setting options available via a user-friendly touch screen.

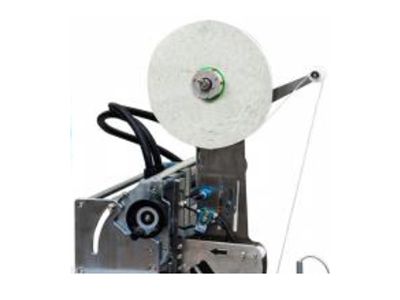

The rotation device facilitates the feeding of double-sided tapes. In addition, the length of the long strip double-sided tape can be controlled through the touch screen parameter setting.
