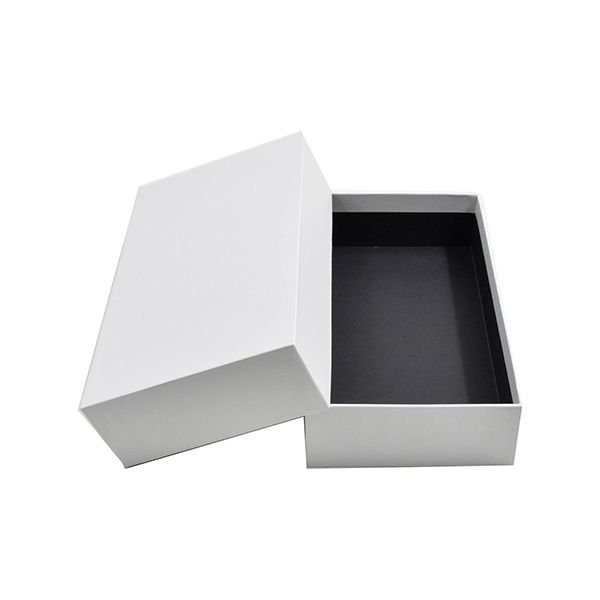

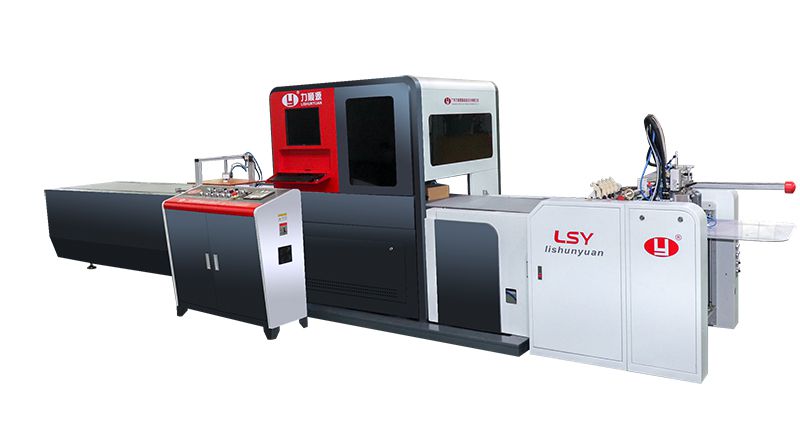

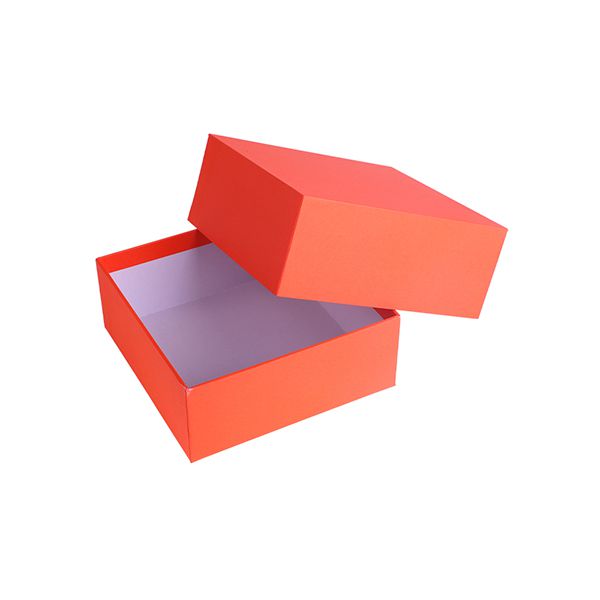

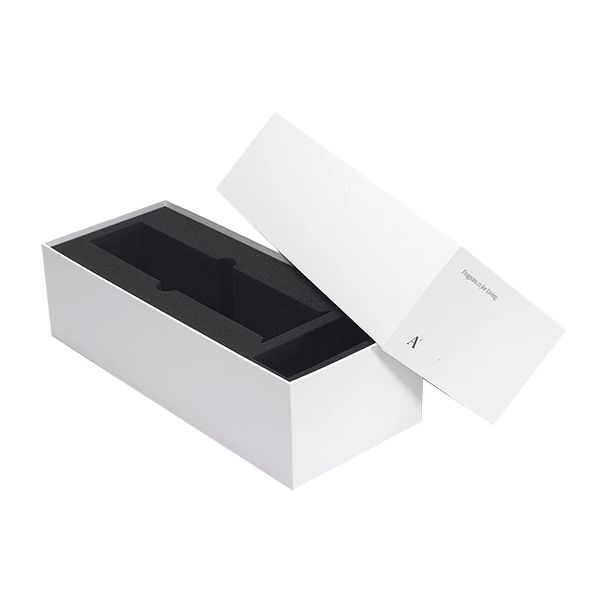

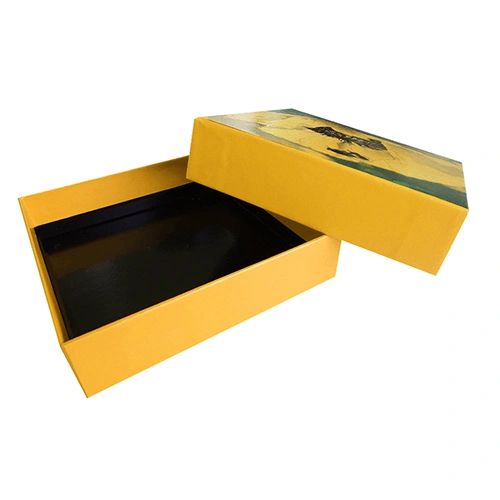

To meet the needs of small-scale box manufacturers who require quick specification changing, Lishunyuan offers a fully automated visual positioning machine that has been designed to be simple to operate. This visual positioning machine is ideal for mass-producing various types of boxes including high-end jewelry boxes, phone boxes, gift boxes, cosmetics boxes, watch boxes, and even some irregularly shaped boxes. With its advanced capabilities, this box positioning machine can meet the demands of today’s modern packaging industry and is sure to provide an efficient solution for box-making on a larger scale.
| Product Model | LY-600CCD | |
| Paper Size | W (min) | 95 mm |
| W (max) | 600 mm | |
| L (min) | 180 mm | |
| L (max) | 880 mm | |
| Paper Thickness | 80-300 g/m2 | |
| Positioning Size | L (min) | 70 mm |
| L (max) | 400 mm | |
| W (min) | 60 mm | |
| W (max) | 350 mm | |
| H (min) | 15 mm | |
| H (max) | 120 mm | |
| Positioning Accuracy | ±0.05 mm | |
| Manufacturing Speed | 25-35 sheets/min | |
| Maximum Power | 12 kW | |
| Overall Size (L*W*H) | 4700 mm*1550 mm*2000 mm | |
| Weight | 2000 kg | |
