Automatic Notching Machine, LY-900KC

Used for rigid box manufacturing

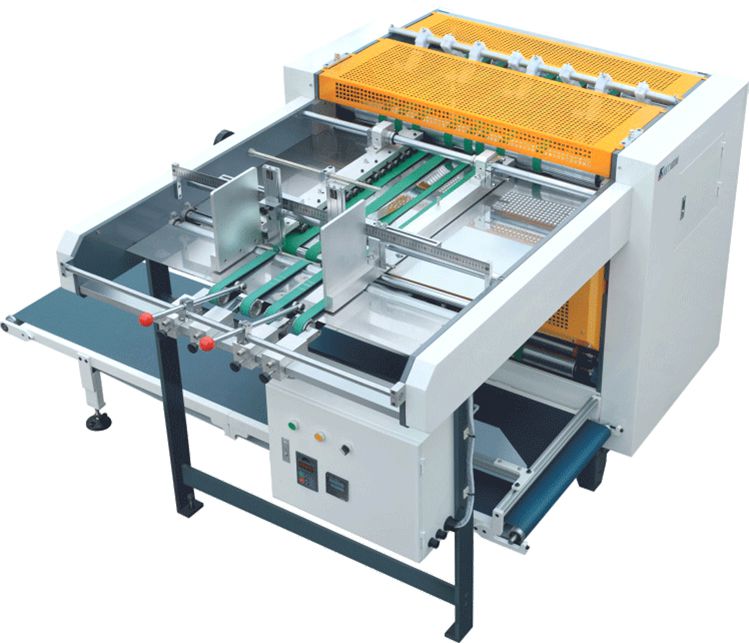

Automatic Notching Machine
Get A Quote

The automatic notching machine is designed specifically for cutting V-shaped grooves into various types of industrial cardboards and greyboards. The cardboard should be covered on the roller with a diameter of 60 cm to ensure the groove is cut accurately without any deviation.

This automatic notching machine is suitable for cutting grooves on the cardboards making two-piece boxes, book-style boxes, wine boxes, phone boxes (for electronic products), jewelry boxes, and mooncake boxes.

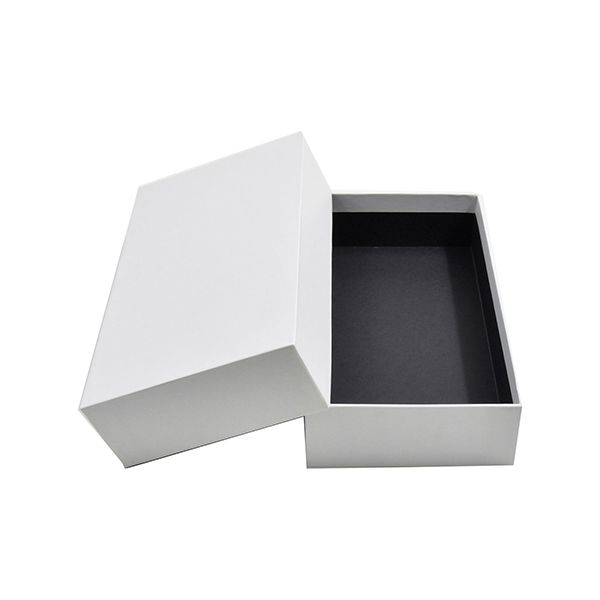

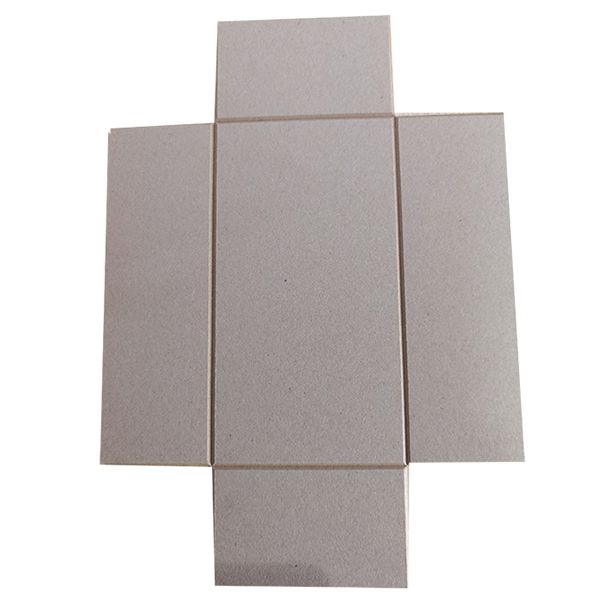

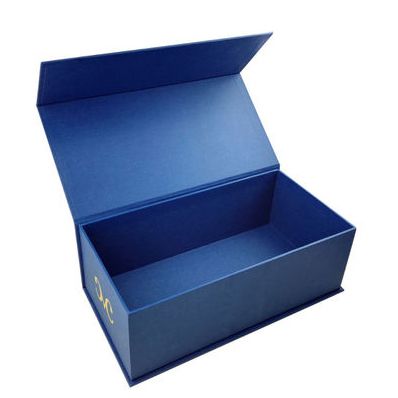

Sample Boxes
  • Sample Boxes
  • Sample Boxes
  • Sample Boxes
Features
  • High Precision
    The notching machine uses an automatic paper feeding system to ensure a precise delivery of boards. Thanks to its automatic deviation correction of single-side alignment, the notching machine provides a 50% increase in precision compared to double-side alignment machines, eliminating the instability issues that come with manual board delivery.
  • High Speed
    Powered by a continuous paper feeding mechanism, pressure rollers enable the milling process to be completed in a single pass.
  • Durable Tools
    The cutting tools that come with the notching machine are sharp and exceptionally durable, thanks to their resistance to wear and tear.
  • Double-layered Material Collection
    For easy waste management, the notching machine features a double-layered material collection system. The upper layer collects finished products, while the lower layer sends waste material from the four corners of the board to the back of the notching machine for disposal.
Parameters
Infeed Paper Width 120-850 mm
Infeed Paper Length 120-400 mm
Maximum Accuracy +0.05 mm
Standard Accuracy ±0.1 mm
Maximum Manufacturing Speed 30-32 m/min, 110-120 pcs/min (work piece size 200*200 mm)
Standard Manufacturing Speed 20-25 m/min
Grooving Angle 80°-140° adjustable
Cardboard Thickness 300 gsm-3.5 mm
Number of Grooves Notched at the Same Time 9
Rated Power 3.0 kW
Waste Collection Automated
Finished Product Collection Collecting from the same direction on both layers
Positioning Accuracy Bi-directional precision positioning
Weight 1480KG
Overall Size 2100*1400*1350 mm

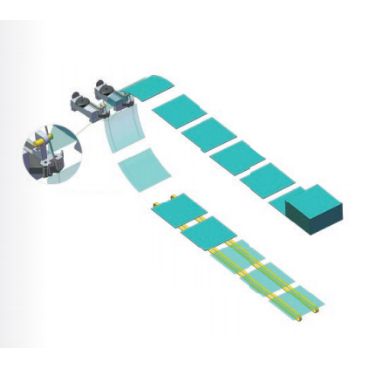

Production Process
Production Process
Other Equipment of Rigid Box Line

There are some box making Equipment that we featured for choose your best
Automatic Notching Machine
Automatic Notching Machine, LY-1000KC

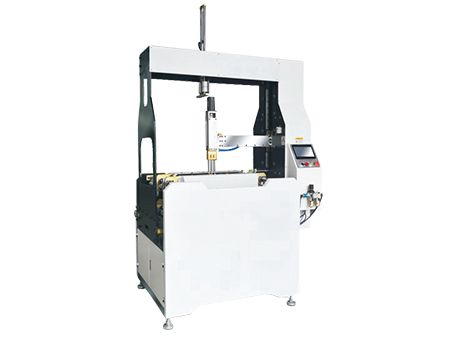

Rigid Box Wrapping Machine
