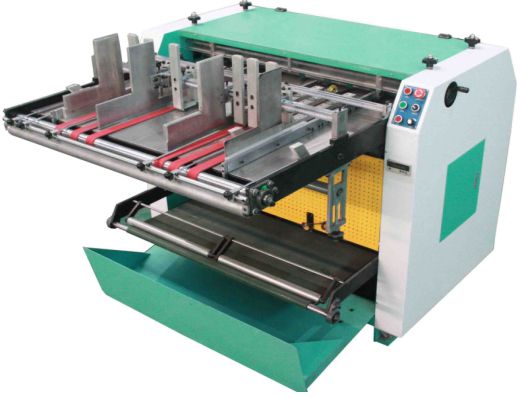

Automatic Notching Machine, LY-1000KC

Used for rigid box manufacturing
Automatic Notching Machine
Get A Quote

The automatic notching machine is designed specifically for cutting V-shaped grooves into various types of industrial cardboards and greyboards. The cardboard should be covered on the roller with a diameter of 60 cm to ensure the groove is cut accurately without any deviation.

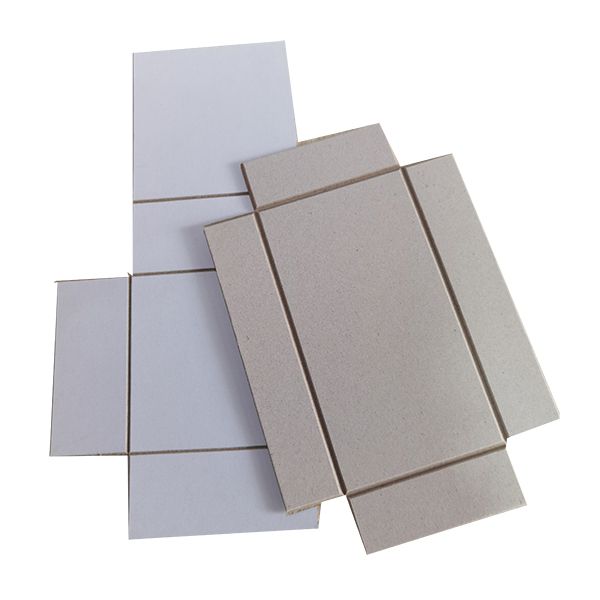

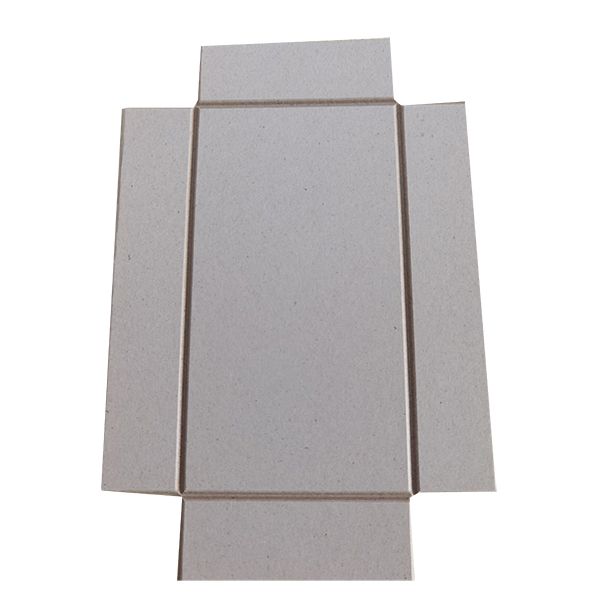

Sample Boxes
  • Sample Boxes
  • Sample Boxes
  • Sample Boxes
  • Sample Boxes
Parameters
Cardboard Width/Length 100-1000 mm
Cardboard Thickness 0.3-4 mm
Number of Grooves Notched at the Same Time 8
Gap Between Grooves 0-1100 mm
Manufacturing Speed 10-35 m/min
Voltage 220V
Rated Power 1.5kW
Overall Size 1500 mm* 1300 mm*1250 mm
Weight 1300 KG
Features
  • High Precision
    The notching machine uses an automatic paper feeding system to ensure a precise delivery of boards. Thanks to its automatic deviation correction of single-side alignment, the notching machine provides a 50% increase in precision compared to double-side alignment machines, eliminating the instability issues that come with manual board delivery.
  • High Speed
    Powered by a continuous paper feeding mechanism, pressure rollers enable the milling process to be completed in a single pass.
  • Durable Tools
    The cutting tools that come with the notching machine are sharp and exceptionally durable, thanks to their resistance to wear and tear.
  • Full Automation
    Fully automated production increases efficiency and saves on labor costs.
  • User-friendliness
    With a click of the bottom, the cardboard will be notched as desired.

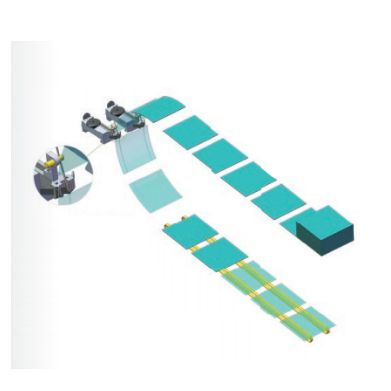

Production Process
Production Process
