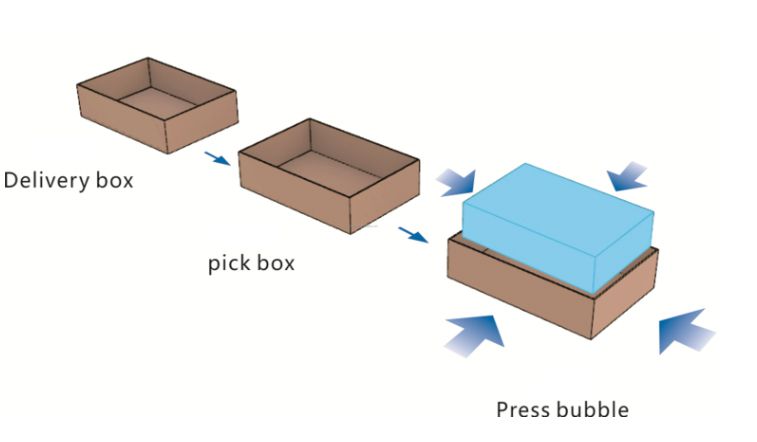

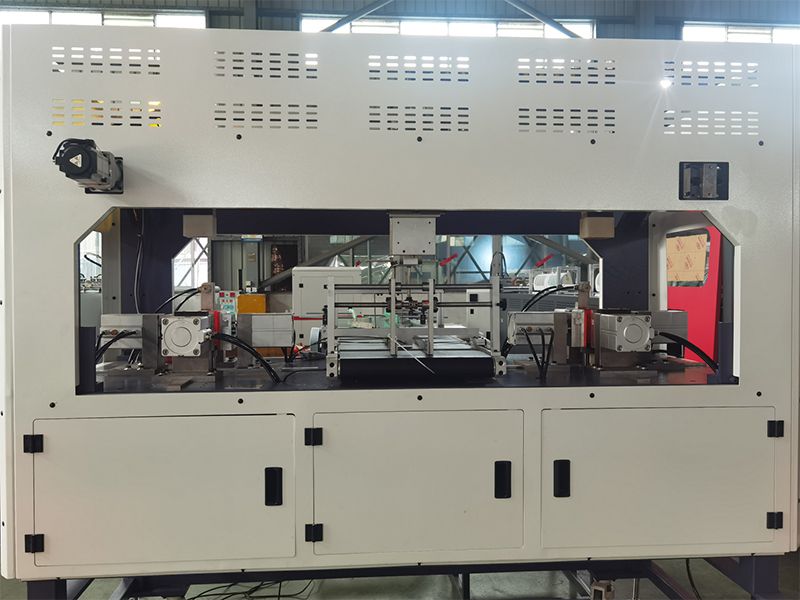

The LY-480YPJ dual-station rigid box pressing machine is specifically designed for pressing high-end boutique two-piece boxes, where the pressing of bubbles is a crucial step. Its unique dual-station pressing system enables the pressing machine to efficiently feed boxes and pick boxes by the two edges, thereby increasing work efficiency and ensuring that no scratches or damage is done to the products. The box bubble removing machine employs servo-driven bubble pressing technology that allows it to operate at an impressive speed of up to 28-35 pieces per minute.

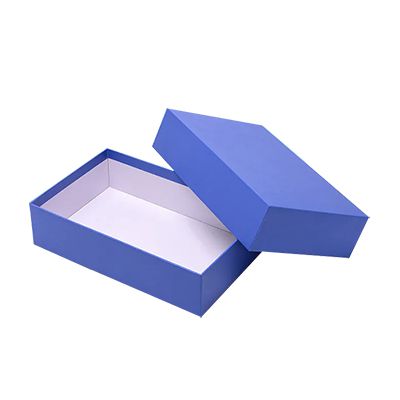

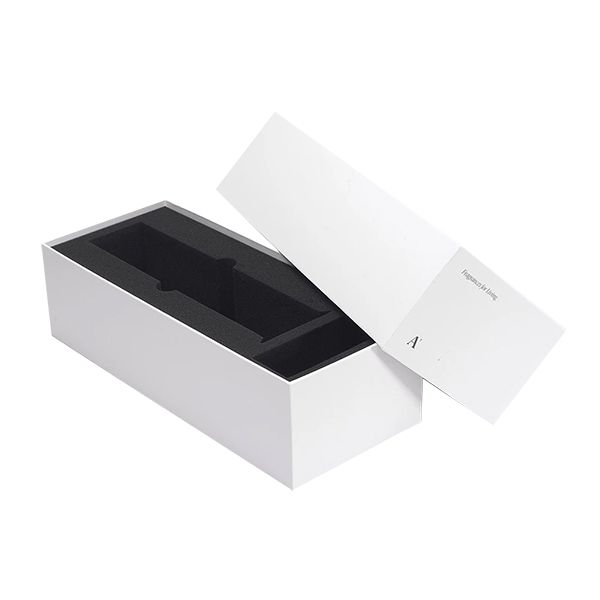

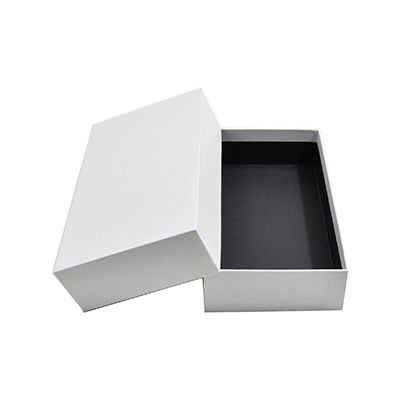

Sample Boxes
The dual-station rigid box pressing machine is often used in conjunction with high-end automatic two-piece box making machine for manufacturing phone boxes, and various other premium boutique boxes.
Parameters| Product Model | LY-480YPJ |
| Max. Box Dimension | 450 mm*400 mm*140 mm |
| Min. Box Dimension | 80 mm*60 mm*10 mm |
| Manufacturing Speed | 28-35 pcs/min |
| Rated Power | 2.5 kW |
| Weight | 750 kg |
| Overall Size (L* W*H) | 2300 mm*920 mm*1800 mm |
