Automatic Rigid Box Corner Pasting Machine, LY-600

Used for applying tapes on four corners of box blank
Automatic Rigid Box Corner Pasting Machine
Get A Quote

The LY-600 automatic rigid box corner pasting machine is designed for corner pasting of all kinds of two-piece boxes. As it featuring automatic functions, the corner pasting machine can paste the four corners of a box in one go, delivering consistent quality while saving significant labor costs and increasing production efficiency exponentially.

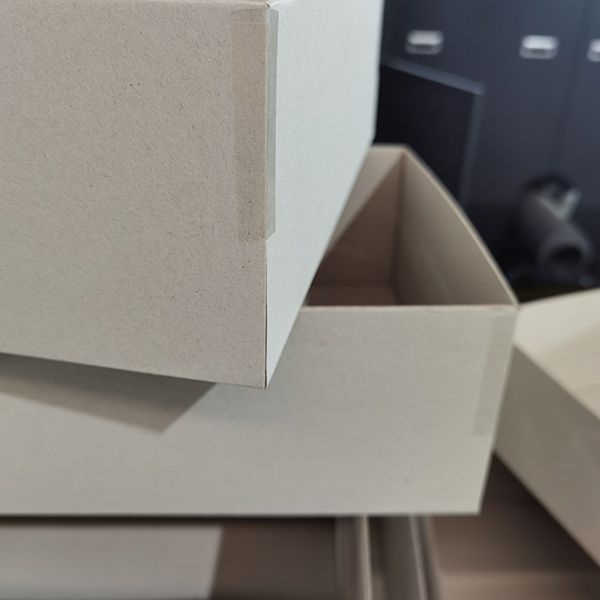

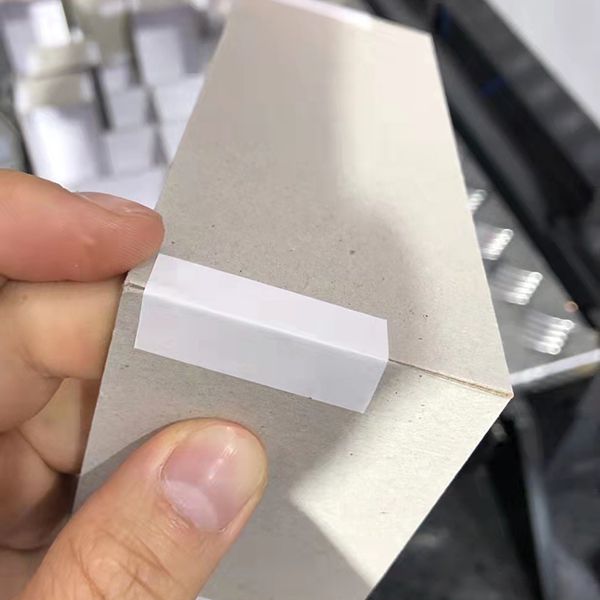

Sample Boxes
  • Sample Boxes
  • Sample Boxes
  • Sample Boxes
Parameters
Product Model LY-600
Cardboard Thickness 1.2-4 mm
Min. Box Dimension 50 mm*50 mm*10 mm
Max. Box Dimension 480 mm*450 mm*150 mm
Manufacturing Speed 35-50 pcs/min
Voltage 220 V
Rated Power 3.0 kW
Overall Size 1900 mm*1200 mm*1900 mm
Weight 1000 kg
Features
  • The rigid box corner pasting machine reduces manual labor, and can paste box corners with high, low, or turned edges.
  • The production speed can be intelligently adjusted in real-time to meet production capacity needs.
  • The corner pasting machine features easy operation with built-in alarm prompts in case of malfunctions.
  • The rigid box pasting machine has compatibility with both fully automatic and semi-automatic production lines.
  • Real-time production data can be collected for easy record-keeping.
  • A single-arm pressing device is combined with a temperature control system for precise and consistent results.
  • Eco-friendly hot melt adhesive tape, which is adjustable between 5-35mm, is used for corner pasting.
  • A suctioning device is installed below for gentle and stable box placement onto the conveyor belt.

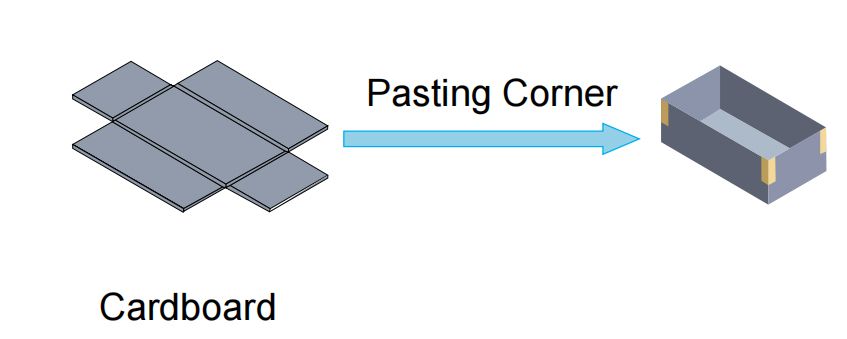

Production Process
Production Process
